Air Filters

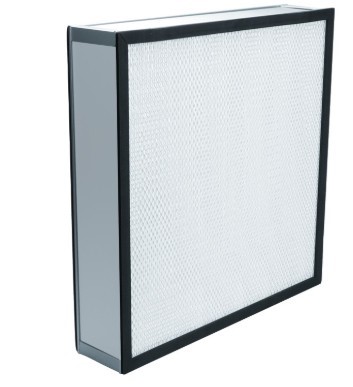

Met - Pleat Filter

The Met Pleat filter series comprises of pleated cassette type filters. They are typically used in the Air supply/Air handling units such as Automotive Paint shops, Offices, Shopping malls, Airports, Pharmaceuticals, Biotech labs, Semiconductor & other industries. These products can be engineered to deliver specific value to our customers.

You could choose from the following options:

Media: Synthetic-self-supporting/supported, FPCP, washable & disposable

Frame: Galvanised iron, aluminium, plastic and carton

Construction: Box/flange type

Specification	Value
MERV	5 - 15
EN779	G3 + F9
Eurovent 4/5	EU3 - EU5

Met - Pleat Filter Features

• Rigid thermo bonded media
• Washable and cleanable
• Metal & plastic frames
• Plastic frame fully incinerable & corrosion free
• Media bonded to the frame completely
• Stable at 100% relative humidity and up to a temperature of 100°C
• Various pleat depths available
• New Media having high efficiency, low pressure drop, self-supportive with higher dust holding capacity without absorbing water content after washing.

Met - Pleat Filter Features

Met - Pleat Filter Benefits

• No supporting wire mesh
• Reusable
• Engineered solution for effective dust control
• Environmentally friendly
• Leak proof construction
• Can be used in tough environments
• Lower energy cost

Met - Pleat Filter Benefits

UNSUPPORTED DISPOSABLE MEDIA

Met - Pleat Synthetic Features

• Graded density synthetic media/FPCP media
• Various pleat depths available
• Media bonded to the frame completely
• Plastic frame fully incinerable and corrosion free
• Energy saving design
• Available in G3 - F9
• Metal, plastic frames (non-wet applications only)
• Stability at 100% relative humidity (not applicable for carton frame filters)
• High dust holding design
• Quick media change design
• FPCP media is washable and reusable
• Can be cleaned by compressed air up to F5 grade

Met - Pleat Synthetic Features

Met - Pleat Synthetic Benefits

• Progressive filtration
• Engineered solution for effective dust control
• Leak proof construction
• Environmental friendly
• Lower energy cost
• Longer life
• Lower replacement cost

Met - Pleat Synthetic Benefits

• Progressive filtration
• Engineered solution for effective dust control
• Leak proof construction
• Environmental friendly
• Lower energy cost
• Longer life
• Lower replacement cost

TYPICAL FILTER DATA FOR STANDARD FILTER SIZE AS PER DIN EN 779/ASHRAE

Product Code	Media Type	Grade	Dimension	Rated Air Flow (CMH)	DP Initial (Pa)	DP Final (Pa)
G3	Synthetic Media	G3	610x610x50mm	3400	35	250
G3		G3	610x305x50mm	1700	35	250
G4	Synthetic Media	G4	610x610x50mm	3400	40	250
G4		G4	610x305x50mm	1700	40	250
F5	Synthetic Media	F5	610x610x300mm	3400	70	450
F5	Synthetic Media	F5	610x305x300mm	1700	70	450
F7	Synthetic Media	F7	610x610x300mm	3400	90	450
F7	Synthetic Media	F7	610x305x300mm	1700	90	450
F9	Synthetic Media	F9	610x610x300mm	3400	130	450
F9	Synthetic Media	F9	610x305x300mm	1700	130	450
F5	Glass Fiber	F5	610x610x300mm	3400	80	450
F5	Glass Fiber	F5	610x305x300mm	1700	80	450
F7	Glass Fiber	F7	610x610x300mm	3400	100	450
F7	Glass Fiber	F7	610x305x300mm	1700	100	450
F9	Glass Fiber	F9	610x610x300mm	3400	150	450
F9	Glass Fiber	F9	610x305x300mm	1700	150	450

Dimensions other than the ones mentioned are also available on request in both box & flange type.

The data provided is indicative only. For actual specification, the user is requested to call our technical support to ascertain the correct values. Also, the data of various types and brands are comparable only if they have been tested under the same norm.

Dust holding capacity is measured according to DIN EN 779/ASHRAE until the rated final pressure drop is achieved. In case higher final pressures at economical operations are feasible, dust holding capacity increases correspondingly.

PRODUCT SELECTION MATRIX /APPLICATION GUIDE

Market	Application	Primary Filter	Secondary Filter
Automative OEMs & Auto Ancillary Unit	In Air Supply Units for Paint Shops	G3-G4
Clean Rooms	Pharmaceuticals, Biotech labs, Semiconductor, Food & Beverages, Hospital, Research labs	G3-G4	F5, F7
Others	Gas Turbines, ASU	G3-G4
Textiles, Chemicals & Fertilisers	As Fresh Air intake for Process area	G3-G4	F5, F7

The product selection matrix is to highlight the potential application areas and for starting point reference only. However, for specific application requirement, users are requested to consult our technical product specialists.

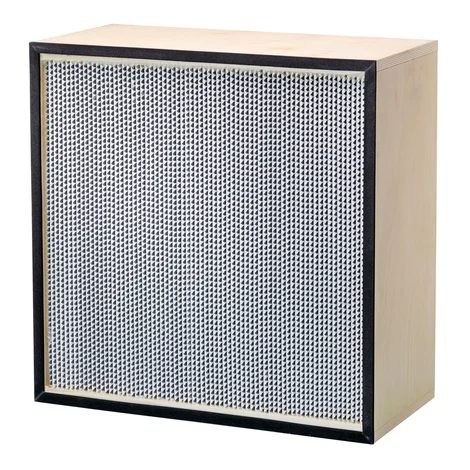

Deep Pleat HEPA Filters

Met Deep Pleat HEPA filters are made from water-resistant, fire-retardant, microfine glass fibre media. These filters are designed to accommodate regular air flow volumes. A 610 mm x 610 mm x 300 mm filter can handle air flow volumes up to 1000 cfm or 1700 cmh. This category of filters is mostly used in healthcare industries, pharmaceuticals, biotech labs, R&D labs, food & beverage companies, electronics, the semiconductor industry, and other dust-critical process industries.

You could choose from the following options:

Frame: Aluminium, Anodised/Non-anodised MS powder coated, SS & plastic

Construction: Box/flange type

MERV	3-14
EN1822	G2+F9
Eurovent A/S	EU3-EU9

Deep Pleat HEPA Filters Features

• Stable at 100% relative humidity and up to a temperature of 100°C
• Corrugated aluminium separators
• Aluminium, MS powder-coated & stainless steel housing options
• Individually leak tested
• Media fully bonded to housing
• Neoprene rubber gaskets
• Polyurethane-based adhesive

Deep Pleat HEPA Filters Benefits

• Can withstand harsh environments
• Low initial pressure drops and energy-saving design
• Corrosion resistant
• Guaranteed leak-proof construction
• No contamination in workplace
• Leak-proof/airtight fitment to housing
• Media fully bonded to housing

TECHNICAL DATA SHEET: (TESTING AS PER EN 1822 & ISO 14644)

Product Code	Grade	Dimension	Rated Air Flow (CMH)	Dp Initial (Pa)	Dp Final (Pa)
H13	H13	610x610x150mm	1700	280	750
H13	H13	610x305x150mm	850
H13	H13	610x610x300mm	3400
H13	H13	610x305x300mm	1700
H14	H14	610x610x150mm	1700	320	750
H14	H14	610x305x150mm	850
H14	H14	610x610x300mm	3400
H14	H14	610x305x300mm	1700

The data provided is indicative only. For actual specification, the user is requested to call our technical specialists to ascertain the correct values. Also the data of various types and brands are comparable only if they have been tested under the same norm. Dust holding capacity is measured according to DIN EN 779/ASHRAE until the rated final pressure drop is achieved. In case higher final pressures at economical operations are feasible, dust holding capacity increases correspondingly.

PRODUCT SELECTION MATRIX / APPLICATION GUIDE

Application	Terminal Filter
Cleanrooms
Pharmaceuticals	H13
Electronics & Semiconductor	H13
Hospitals	H13, H14
Biotech labs	H13, H14
Research labs	H13, H14
Others
Nuclear power plants	H13, H14
Textiles (air compressor plants)	H13, H14

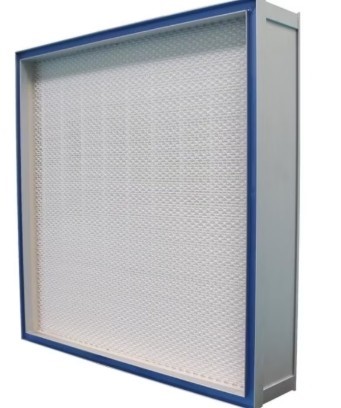

Super Deep Flat HEPA filters

Super Deep Pleat HEPA Filters

Met Super Deep Flat HEPA filters are made from water resistant, fire retardant moline glass fibre media. These Filter are designed to accommodate high air flow volumes. A 610 mm x 610 mm x 300 mm filter can accommodate upto 2000 cfm or 3.400 cmh. This category of filters is mostly used in healthcare industries, Pharmaceuticals, Biotech labs R&D labs, Food & Beverage companies, Electronics, Manufacturing and other dust critical process industries.

You could choose from the following options:

Frame: Aluminium, anodised/without anodised MS powder coated and SS

Construction: Box/flange type/Header

Specification	Value
MERV	16-20
EN 1822	H10-H14
Eurovent 4/5	EU10 - EU14
IEST RP CC 001.3	A, B, C, D

Super Deep Pleat HEPA Filters Features

• Stable at 100% relative humidity and up to a temperature of 100°C
• Corrugated aluminium separators
• Aluminium, MS powder-coated & SS housing options
• Individually leak tested
• Media fully bonded to housing
• Neoprene rubber gaskets
• Polyurethane-based adhesive

Super Deep Pleat HEPA Filters Features

Super Deep Pleat HEPA Filters Benefits

• Stable at 100% relative humidity and upto a temperature of 180°c
• Graded density
• Coalescing media with suitable impregnation
• Compressed fleece on air leaving side

TECHNICAL DATA SHEET: (TESTING AS PER EN 1822 & ISO 14644)

Product Code	Grade	Dimension	Rated Air Flow (CMH)	Dp Initial (pa)	Dp Final (pa)
H13	H13	610x610x150mm	1700	280	750
H13	H13	610x305x150mm	850
H13	H13	610x610x300mm	3400
H13	H13	610x305x300mm	1700
H14	H14	610x610x150mm	1700	320	750
H14	H14	610x305x150mm	850
H14	H14	610x610x300mm	3400
H14	H14	610x305x300mm	1700

PRODUCT SELECTION MATRIX / APPLICATION GUIDE

Application	Terminal Filter
Cleanrooms
Pharmaceuticals	H13
Electronics & Semiconductor	H13
Hospitals	H13, H14
Biotech labs	H13, H14
Research labs	H13, H14
Others
Nuclear power plants	H13, H14
Textiles (air compressor plants)	H13, H14

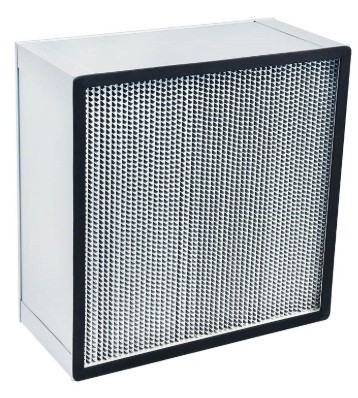

High Temp D Pleat Hepa Filter

Our’s MET HT-Set and Super are examples of a new high temperature HEPA filtration technology. Specifically designed for use in dehydrogenation ovens, tunnels for sterilization purposes and in FBD tunnels, High temperature HEPA filters are also used in aseptic clean side operation (supply air) of manufacturing and in pharmaceutical regulatory agencies processes to remove pyrogens to assure that they are suitable for their intended use.

Standard	Grade
EN 1822	H13 - H14
Eurovent 4/5	EU13 - EU14
IEST RP CC 001.3	A, B, C, D

High Temp D Pleat Hepa Filter Features

• Designed and constructed with high quality material
• Media protection grilles (a stainless-steel face grid) is installed on both the air entering and air exiting side of the filter
• Temperature Stability up to 350°C
• Leak free integrity required to pass FDA validations

High Temp D Pleat Hepa Filter Features

High Temp D Pleat Hepa Filter Benefits

• Repeatable in-field performance during all cycling (heat-up and cool-down) operations.
• Ensures protection of the media pack and adds to the filter pack's structural integrity

High Temp D Pleat Hepa Filter Benefits

• Repeatable in-field performance during all cycling (heat-up and cool-down) operations.
• Ensures protection of the media pack and adds to the filter pack's structural integrity

TECHNICAL DATA SHEET: (TESTING AS PER EN 1822)

Product Code	Grade	Dimension	Rated Air Flow (CMH)	Dp initial (pa)	Dp Final (pa)
H13	H13	610X610X150mm	850	250	750
H13	H13	610x305x150mm	425	250	750
H13	H13	610x610x300mm	1700	250	750
H13	H13	610x305x300mm	850	250	750
H14	H14	610X610X150mm	850	280	750
H14	H14	610x305x150mm	425	280	750
H14	H14	610x610x300mm	1700	280	750
H14	H14	610x305x300mm	850	280	750

Temperature stability upto 350 C
Dimension other than the ones mentioned are also available on request

TECHNICAL DATA SHEET: (TESTING AS PER EN 1822)

Product Code	Grade	Dimension	Rated Air Flow (CMH)	Dp initial (pa)	Dp Final (pa)
H13	H13	610X610X150mm	1700	280	750
H13	H13	610x305x150mm	850	280	750
H13	H13	610x610x300mm	3400	280	750
H13	H13	610x305x300mm	1700	280	750
H14	H14	610X610X150mm	1700	320	750
H14	H14	610x305x150mm	850	320	750
H14	H14	610x610x300mm	3400	320	750
H14	H14	610x305x300mm	1700	320	750

The data provided is indicative only. For actual specification, the user is requested to call our technical specialists to ascertain the correct values. Also, the data of various types and brands are comparable only if they have been tested under the same norm. Dust holding capacity is measured according to DIN EN 779/ASHRAE until the rated final pressure drop is achieved. In case higher final pressures at economical operations are feasible, dust holding capacity increases correspondingly.

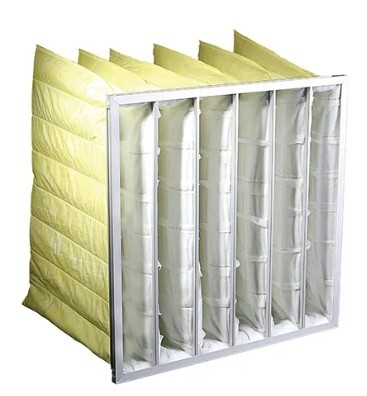

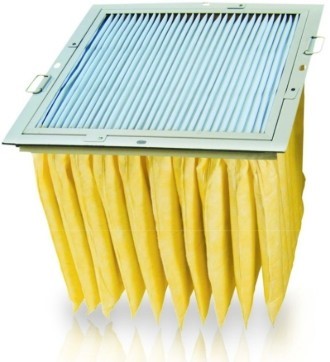

Met – Pocket Filter

The Met Pocket filter series is an excellent choice for secondary & fine filter requirement, it is generally used in

Automotive paint booths, Health Care facilities,
Commercial buildings and other industrial filtration requirements. Available in both synthetic and glass fibre media, these filters can be designed with varying number of pockets to suit different air flow requirements.

Pocket filters lend flexibility for upgrading of the air quality to meet the needs of the manufacturer. These are also cost effective and highly efficient since there is very little metal support and what is discarded is mostly the choked media which in any case needs to be discarded.

You could choose from the following options:
Media: Synthetic (High loft, standard loft with/without aerodynamic spacers) Glass fibre media
Frame: Galvanised iron, aluminium, plastic & powder coated MS
Edge Sealing: Ultrasonically welded, stitched
Construction: Box /Flange

MERV	EN 779	Eurovent 4/5
5-15	G3- F9	EU3- EU9

Met – Pocket Filter Features

• Graded density media
• Light in weight
• Filter dimension, pocket depth to suit application requirement
• Leak proof construction
• Plastic frame filters fully incinerable & corrosion free
• Stable at 100% relative humidity and up to a temperature of 100°C
• Energy saving design
• Aero dynamic spacers offer optimum pleat separation
• Glass fibre media (F5-F9) have finer fibres in the range of 1 to 1.3 micron diameter as compared to synthetic media (3-4 micron)

Met – Pocket Filter Features

Met – Pocket Filter Benefits

• Progressive filtration offers high dust holding capacity and greater efficiency
• Custom solution for different air flow volumes
• Efficient filtration - no contamination
• Environmental friendly
• Works under demanding situations
• Lower energy cost
• Special design ensures that there is no ballooning effect resulting in optimal dust holding capacity

Met – Pocket Filter Benefits

TYPICAL FILTER DATA FOR STANDARD FILTER SIZE AS PER DIN EN 779/ASHRAE

Product Code	Media Type	Grade	Dimension	No. Pocket	Rated Air Flow (CMH)	Dp Initial (Pa)	Dp Final (Pa)
G3	Synthetic Media	G4	592x592x360	6	3400	60	250
G3	Synthetic Media	G4	592x292x360	6	1700	60	250
G4	Synthetic Media	G4	592x592x600	6	3400	40	250
G4	Synthetic Media	G4	592x292x600	6	1700	40	250
F5	Synthetic Media	F5	592x592x600	8	3400	70	450
F5	Synthetic Media	F5	592x292x600	8	1700	70	450
F7	Synthetic Media	F7	592x592x600	10	3400	90	450
F7	Synthetic Media	F7	592x292x600	10	1700	90	450
F9	Synthetic Media	F9	592x592x600	10	3400	120	450
F9	Synthetic Media	F9	592x292x600	10	1700	120	450

PRODUCT SELECTION MATRIX / APPLICATION GUIDE

Markets	Application	Primary Filter	Secondary Filter
Automotive OEMs & Auto Ancillary Units	In ASUs for Paint shops	G4, F5, F6	F5, F6, F7, F8
HVAC, Airports shopping malls & Hotels	In ASUs for fresh air intake	G4, F5, F6	F5, F6, F7, F8
Cleanrooms	Pharmaceuticals, Biotech labs	In ASUs for fresh air intake	F5, F7
	Electronics & Semiconductor	In ASUs for fresh air intake	F5, F7
	Food & Beverages, Hospitals	In ASUs for fresh air intake	F5, F7
	Research Labs	In ASUs for fresh air intake	F5, F7
	Others	In ASUs for fresh air intake	F9
Gas Turbines	Air Supply Units	G4, F5
Textiles	In AHUs for fresh air intake in process area	F5, F7	F9
Chemical & Fertilisers	In AHUs for fresh air intake in process area	G3-G4	F5

Application as plenum
The product selection matrix is to highlight the potential application areas and for starting paint reference only. However, for specific application requirement, users’ ore requested to consult our product specialists.

Mini Pleat HEPA Filters

Minipleat HEPA Filters

MET Mini pleat HEPA filters are made from water resistant, fire retardant, imported micro fine glass fibre media. These filters are designed to accommodate higher airflow volumes for space saving. The filter packs are manufactured with the latest imported miniplate manufacturing machine. This category of filters is widely used for laminar flow benches, bio safety cabinets, dispensing booths and as terminal filters in cleanroom.

You could choose from the following options:

Frame: Anodised extruded aluminium, MS powder coated, 55, plastic, polystyrene housing

Construction: Box/Flange type

MERV	EN 779	Eurovent 4/5
12–15	F6–F9	EU7–EU9

MERV	EN 1822	Eurovent 4/5
H10–H14	EU10–EU14	A, B, C, D

Minipleat HEPA Filters Features

• Stable at 100% relative humidity and temperature up to 100°C
• Fused plastic thread separators
• Individually leak and efficiency tested
• Media fully bonded to the housing with the use of imported casting machine
• Foam in place endless gasket

Minipleat HEPA Filters Features

Minipleat HEPA Filters Benefits

• Holds almost twice as much media area as compared to deep pleat of equal size
• Space saving design
• Environmentally friendly
• Corrosion resistant
• Guaranteed leak proof construction

Minipleat HEPA Filters Benefits

• Holds almost twice as much media area as compared to deep pleat of equal size
• Space saving design
• Environmentally friendly
• Corrosion resistant
• Guaranteed leak proof construction

TECHNICAL DATA SHEET: (TESTING AS PER EN 1822, ISO 14644)

Type	Product Code	Dimension	Rated Air Flow (CMH)	dp Initial (Pa) H13	dp Initial (Pa) H14
MT 69	MT-3369	305X305X69mm	150	140	160
	MT-3669	305X610X69mm	300	140	160
	MT-6669	610x610x69mm	600	140	160
	MT-6769	610x762x69mm	750	140	160
	MT-6969	610x915x69mm	900	140	160
	MT-6269	610x1220x69mm	1200	140	160
	MT-6869	610x1830x69mm	1800	140	160
	MT-9969	915x915x69mm	1330	140	160
	MT-9269	915x1220x69mm	1800	140	160
	MT-9869	915x1830x69mm	2700	140	160
MT 90	MT-3390	305X305X90mm	150	100	120
	MT-3690	305x610x90mm	300	100	120
	MT-6690	610x610x90mm	600	100	120
	MT-6790	610x762x90mm	750	100	120
	MT-6990	610x915x90mm	900	100	120
	MT-6290	610x1220x90mm	1200	100	120
	MT-6890	610x1830x90mm	1800	100	120
	MT-9990	915x915x90mm	1330	100	120
	MT-9290	915x1220x90mm	1800	100	120
	MT-9290	915x1830x90mm	2700	100	120
MT 150	MT-3315	305x305x150mm	330	220	250
	MT-3615	305x610x150mm	670	220	250
	MT-6615	610x610x150mm	1450	220	250
	MT-6715	610x762x150mm	1830	220	250
	MT-6915	610x915x150mm	2220	220	250
	MT-6215	610x1220x150mm	2990	220	250

DP Final Mini pleat Filters will be 750Pa

Dust holding capacity is measured according to DIN EN 779 /ASHRAE until the rated final pressure drop is achieved. In case higher final pressures at economical operations are feasible, dust holding capacity increases correspondingly.

PRODUCT SELECTION MATRIX / APPLICATION GUIDE

Markets	Application	Grade
Automotive OEMs & Auto Ancillary Unit	In Air Supply Units for Paint shops	F7–F9
Clean Rooms	Pharmaceuticals, Electronic & Semiconductor, Biotech & Research labs, Hospitals - Laminar Flow benches, Dispensing booths, Bio safety Cabinets, Terminal Filters	H13–H14
Others – Nuclear power plants	Terminal Filters	H13, H14, U15, U16
Textiles	Fresh Air Intake	H11, H13
Gas Turbines	Air Supply Units	F6, H10

Minipleat Gel Seal HEPA Filters

MET Mini Pleat Gel Seal HEPA Filters are an advanced version of conventional mini pleat filters in which the gasket is replaced by silica gel, ensuring 0% leakage from the side/flanges. These are made with very high efficiency micro-fiber glass paper media, interspaced with hot melt pleating and enclosed in an aluminium extruded section.

These filters are designed to accommodate higher airflow volumes for space saving.
The filter packs are manufactured with the latest imported mini pleat manufacturing machine.
This category of filters is widely used for laminar flow benches, bio safety cabinets, dispensing booths, and as terminal filters in cleanrooms.

You could choose from the following options:

• Frame: Anodised extruded aluminium

• Construction: Box/Flange type

Filter Class	MERV Rating	Filter Euro vent Class	Frame Depth	Testing Standard
H13-H14	MERV-19	EU-13/EU-14	81	EN:1822
	MERV-19	EU-13/EU-14	105	EN:1822
	MERV-19	EU-13/EU-14	149	EN:1822

Minipleat Gel Seal HEPA Filters Features

• Tested According to EN 1822
• High Efficiency
• High Dust Holding Capacity
• Long Service Life
• 0% Chance of Air Leakage
• Large Surface for Filtration

Minipleat Gel Seal HEPA Filters Features

• Tested According to EN 1822
• High Efficiency
• High Dust Holding Capacity
• Long Service Life
• 0% Chance of Air Leakage
• Large Surface for Filtration

Minipleat Gel Seal HEPA Filters Benefits

• In sophisticated industrial processes (Pharmaceuticals, Biotechnology, Chemical, Optics, Food, Microelectronics, etc.)
• In clean rooms for achieving the desired class
• In laminar air flow systems for bacteria-free air circulation
• In hospitals, pharmacies, labs, research centres, etc.

Minipleat Gel Seal HEPA Filters Benefits

MINIPLEAT GEL SEAL HEPA FILTER TECHNICAL PARAMETERS

Filter Size	CFM	Efficiency	IPD (Pa)	FPD (Pa)	Max. Pressure (Pa)	Temperature (°C)
610x610x81 mm	500	99.99% @ 0.3 Mic	250	600	1000	70
450x450x81 mm	275	99.99% @ 0.3 Mic	250	600	1000	70
305x305x81 mm	125	99.99% @ 0.3 Mic	250	600	1000	70
610x610x105 mm	1000	99.99% @ 0.3 Mic	250	600	1000	70
450x450x105 mm	550	99.99% @ 0.3 Mic	250	600	1000	70
305x305x105 mm	250	99.99% @ 0.3 Mic	250	600	1000	70
610x610x149 mm	1600	99.99% @ 0.3 Mic	250	600	1000	70
450x450x149 mm	900	99.99% @ 0.3 Mic	250	600	1000	70
305x305x149 mm	400	99.99% @ 0.3 Mic	250	600	1000	70

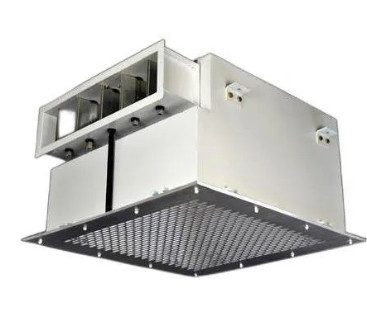

Met Air Geal Hepa Housing

Met Air Gel Hepa Housing

Met Air Geal Hepa Housing terminal boxes are manufacturing using fine material as per the set standard of the industry. terminals are used to install gel seal mini pleat heaps filters. Each terminal boxes are equipped with perforated diffusers inside the hood for air distribution. Terminal boxes have arrangement of installing / mounting on non-walk able & walk able false ceilings/slabs & can also be hanged from the ceiling. Terminal boxes can be Top/ Bottom loading depending on the site situation & requirement.

Met Air Gel Hepa Housing Features

• Easy to install. Compact size & low weight.
• Superior Finish & Corrosion resistant
• SS-304 Ports for Aerosol injection, upstream concentration & diff. pressure measurement
• Aluminum extruded low leakage opposed blade aerofoil dampers
• Worm Wheel arrangement for bottom operation of dampers
• Available in Top/Side connection
• Filter fixing & removing by means of Pressure plate/Stud bolt arrangement

Met Air Gel Hepa Housing Features

Met Air Gel Hepa Housing Applications

• Hospitals
• Pharmaceuticals
• Electronic Industries
• Nano Technology Labs
• Clean rooms for automobiles, food & pharmaceutical industries

Met Air Gel Hepa Housing Applications

• Hospitals
• Pharmaceuticals
• Electronic Industries
• Nano Technology Labs
• Clean rooms for automobiles, food & pharmaceutical industries

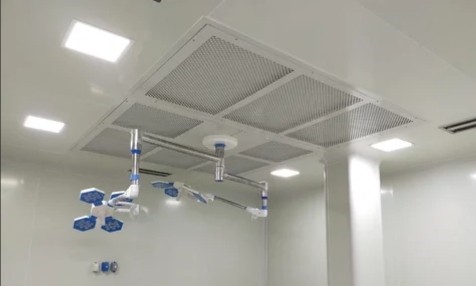

OT PLENUM

Laminar Air Flow plenum is used to create a sterile working area free of bacterial contamination generally located above the operation table & is made of Aluminium/ SS-304 Sheet for suitable strength. In case of Aluminium after the completion of initial fabrication, the plenum is cleaned & powder Coated to give additional protection & Aesthetic look. The Laminar Air Flow is designed in such a way so as to cover the entire operation table, sterile surgical equipment’s & doctors. Each Plenum is equipped with provision of fixing of HEPA Filters, DOP port (Required for HEPA filter integrity test) & built in dampers for controlling the air flow across the HEPA Filters. Provision for fixing the lights is also given if required. Double Skinned plenum is also available.

Standard Sizes: –

2400mm X 2400mm

2400mm X 1800mm

1800mm X 1800mm

1200 mm x 1200mm

Perforated Grills:

SS-304 or Aluminum Powder Coated Perforated grills made from 16 Gauge Aluminum sheet is provided over the HEPA filter face to prevent it from physical damage.

Hepa Filters	0.3 Microns
Efficiency	99.97% Down to 0.3 Micron / 99.99% Down to 0.3 Mic
IPD	25 mm WG / 15 mm of WG
FPD	65 mm WG
Casing	Aluminum Frame
Media	Imported Submicronic Fiber Glasspaper Pleated with Corrugated Aluminum Separators
Euro Vent Class	EU-13 / EU-14
Filter Class	H-13 / H-14
MERV Rating	MERV-19 / MERV-20
Temperature	Ambient
Gasket	Food Grade

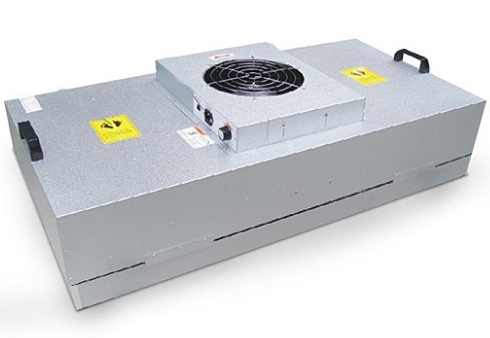

Met Air Fan Filter Unit

FFU (Fan Filter Units) are used in cleanroom facilities to reduce the concentration of particles.

FFUs are typically installed in a grid pattern on the ceiling of a cleanroom to provide a continuous flow of clean and filtered air from above. This downward laminar airflow helps maintain a controlled and clean environment by preventing airborne particles from settling on surfaces or contaminating sensitive processes or products.

Applications	Applications
Cleanroom	Precision Optical Industry
Health and Research Institutes	Operating Theatres
Composites Industry	Food Processing Industry
Pharmaceutical & Laboratories	Semiconductor

Features of FFU

• With AC and EC motor
• Change in velocity using Modbus or control voltage
• Optimized design for minimum vibration and noise
• Filter monitoring
• Customized size available
• Full interface control
• Easier installation and updates
• Lightweight, corrosion-resistant
• Higher energy efficiency

Features of FFU

Parameter	Details
MOC	Galvanized, Stainless Steel, Galvalume, Aluminum
Power Supply	220V 50/60Hz
Air Flow Control	3 speeds / Step less control
Motor Type	EC and AC
Filter	Mini Pleat HEPA filter
Standard / Certificate	H14 filter as per EN1822
Separator Style	Hot Melt Separators
Gasket Material and Position	Rubber Gasket at Air Entry Side of Filter
Noise	s55dB for EC, s60dB for AC
Air Velocity	90 FPM
Power Consumption	85 Watt

Model	Outer Dimension (L x W) mm	Filter Dimension (L x W x H) mm	Air Velocity (FPM)	Total Static Pressure	IPD	Motor
1	610x610	600x600	90	300	150	EC/AC
2	610x915	600x900	90	300	150	EC/AC
3	610x1220	600x1200	90	300	150	EC/AC
4	1220x1220	1200x1200	90	300	150	EC/AC

Combination of Pre Filter

Combination Filters

MET series is a combination of pre filter and fine filter, fabricated and assembled in a single housing.
A separate filter mounting frame for the pre filter has been done away with.
It is available in both cassette and bag filter versions.

Combination Filters Features

• Filter classes F5-F9 as secondary filters supported by pre filter in G3-G4
• Stable at 100% relative humidity and up to a temperature of 100°C
• Frames available in galvanised iron, aluminium, MS powder coated

Combination Filters Features

Combination Filters Benefits

• Wide range of applications
• Can withstand harsh environments
• Environmentally friendly

Combination Filters Benefits

• Wide range of applications
• Can withstand harsh environments
• Environmentally friendly

Standard	Rating
MERV	5+9-7+15
EN 779	G3+F5-G4+F9
Eurovent 4/5	EU3+F5-EU4+F9

FRACTIONAL EFFICIENCY FOR FILTER CLASSES G1 TO F9 ACCORDING TO DIN EN779 STANDARD UNLOADED, CLEAN FILTER

Custom Color Marquee

Efficiency in%

Practical Size	G1	G2	G3	G4	F5	F6	F7	F8	F9
0.1 µm	-	-	-	-	0-10	5-15	25-35	35-45	45-65
0.3 µm	-	-	-	0-5	5-10	10-25	45-60	65-75	75-85
0.5 µm	-	-	0-5	5-15	15-30	20-40	60-75	80-90	90-95
1 µm	-	0-15	5-15	15-35	30-50	50-65	85-95	95-98	>98
3 µm	0-5	5-15	15-35	30-55	70-90	85-95	>98	>98	>99
5 µm	5-15	15-35	35-70	60-90	90-99	95-99	>98	>98	>99
10 µm	40-50	50-70	70-85	80-98	>99	>99	>99	>99	>99

COMPOSITE AVERAGE PARTICLE SIZE EFFICIENCY % IN SIZE RANGE, µM

Range	0.30-1.0	0.30-1.0	0.30-1.0
1	n/a	n/a	E3<20
2	n/a	n/a	E3<20
3	n/a	n/a	E3<20
4	n/a	n/a	E3<20
5	n/a	n/a	20<E3<35
6	n/a	n/a	35<E3<50
7	n/a	n/a	50<E3<70
8	n/a	n/a	70<E3
9	n/a	E2<50	85<E3
10	n/a	50<E2<65	85<E3
11	n/a	65<E1<80	85<E3
12	n/a	80<E2	90<E3
13	E1<75	90<E2	90<E3
14	75<E1<85	90<E2	90<E3
15	75<E1<95	90<E2	90<E3
16	95<E1	95<E2	90<E3

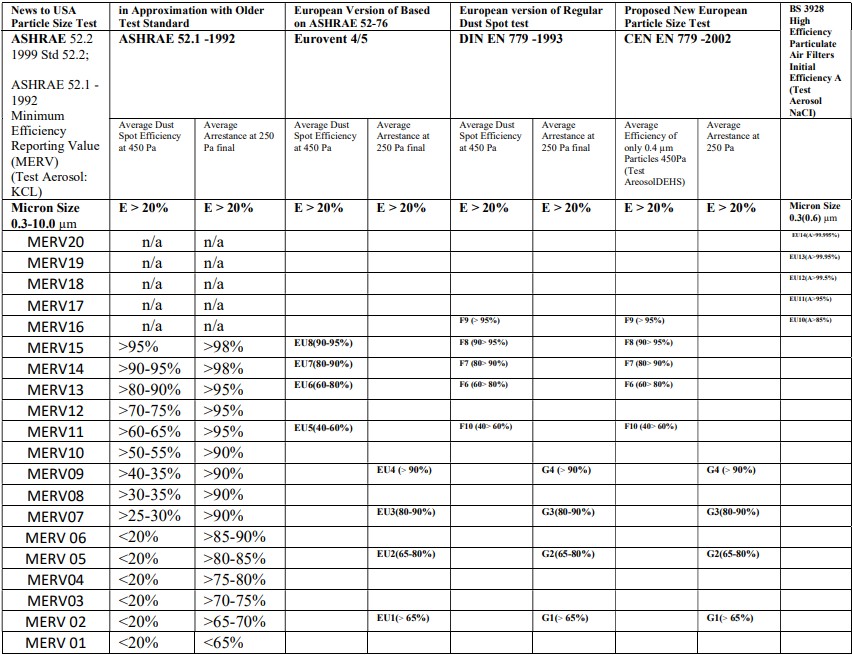

COMPARATIVE OVERVIEW OF FILTER TEST METHODS AND FILTER CLASSIFICATION USED IN THE USA AND EUROPE
